Data centers are built around efficiency, organization, and reliable access to critical infrastructure. Servers, networking equipment, storage systems, power equipment, and monitoring hardware all need to work together within carefully planned rack configurations.
As server density increases, even small pieces of equipment can affect the overall rack layout. This is why choosing the right display solution is important when technicians need local access to servers.

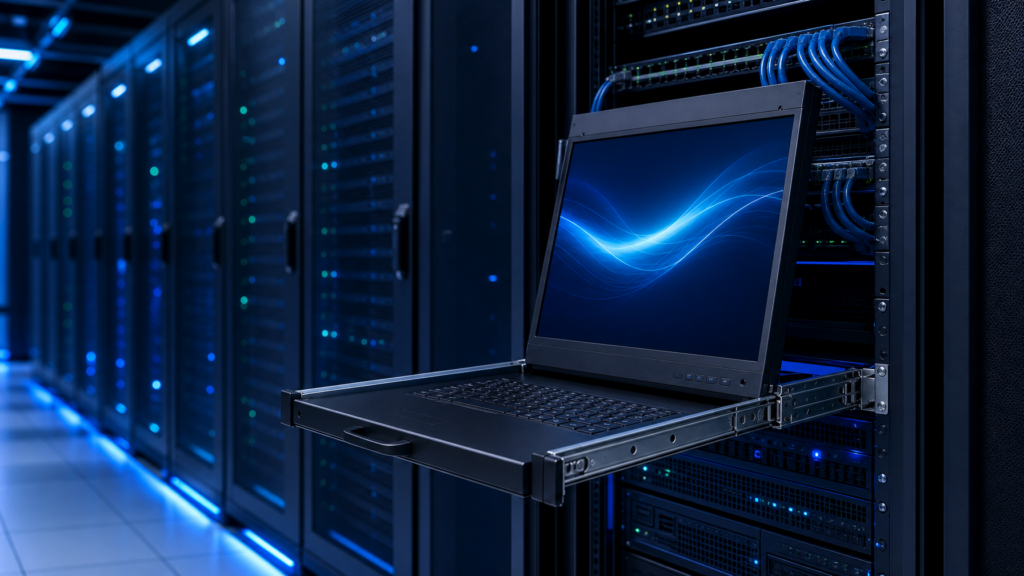

A 1U rack mount monitor provides a compact way to add display access directly to a server rack. Its single-rack-unit design allows data center operators to incorporate a monitor without using the space required by a conventional desktop display.
However, selecting the monitor is only the first step. Proper installation and configuration are equally important. Rack dimensions, cable routing, video connections, KVM compatibility, airflow, accessibility, and power requirements should all be considered before deployment.
Understanding 1U Rack Space
Before installing a 1U rackmount monitor, data center teams should understand the available rack space.
One rack unit, commonly written as 1U, represents approximately 1.75 inches of vertical rack space. A 1U display is designed around this standardized dimension, allowing it to be installed alongside other rack-mounted equipment.
However, having one available rack unit does not automatically guarantee that installation will be straightforward.
Technicians should check the equipment installed above and below the planned position. They should also account for mounting hardware, cable connections, ventilation, and any additional clearance specified by the manufacturer.
Planning these details in advance can prevent installation problems later.
Check Rack Compatibility Before Installation
Rack configurations can vary, so compatibility should be verified before installing a monitor.
The rack’s mounting points, depth, rail configuration, and available clearance should be compared with the monitor’s installation requirements.
A proper fit is important because the monitor needs to remain securely mounted while still allowing technicians to access it when required.
If the display uses a sliding mechanism, additional clearance may be necessary to allow the monitor to extend forward without hitting surrounding equipment.
Data center technicians should therefore evaluate the complete movement and installation area rather than looking only at the monitor’s front dimensions.
Plan the Monitor’s Position
The location of the 1U rack mount monitor can affect both accessibility and cable management.
A display positioned too high or too low may be inconvenient for technicians to use. Similarly, installing it in an area surrounded by frequently accessed equipment may make maintenance more difficult.
The ideal location depends on the rack’s overall purpose.
For example, a rack dedicated primarily to server equipment may benefit from placing the monitor near the systems that require frequent local access.
Before installation, teams should consider who will use the display, how frequently it will be accessed, and which servers or devices it will connect to.
Consider Sliding and Drawer Mechanisms
Many rack-mounted displays are designed as sliding drawer systems.
The monitor remains stored inside the rack when it is not needed and can be pulled forward when technicians require access.
If the selected 1U monitor uses this type of design, the rack should provide sufficient clearance for the drawer to extend fully.
Technicians should also check that cables have enough flexibility to accommodate the monitor’s movement. Cables that are too short or tightly routed can interfere with the sliding mechanism.
A well-planned installation allows the monitor to move smoothly without putting unnecessary stress on connectors or cables.
Plan Cable Routing Carefully
Cable management is one of the most important parts of a rack installation.
A 1U rack mount monitor may connect to one or more servers directly or through a KVM switch. Each connection needs to be routed in a way that keeps cables organized and accessible.
Poor cable routing can create several problems. Cables may become difficult to identify, airflow paths may be obstructed, and technicians may accidentally disconnect the wrong connection during maintenance.
Before installation, determine where the video, keyboard, mouse, power, and other connections will travel.
Keeping cable paths organized can make future troubleshooting considerably easier.
Connecting a Monitor to Multiple Servers
A major advantage of rack-mounted displays is their ability to support centralized access.
In a multi-server environment, a 1U monitor can be connected to a KVM switch. KVM stands for keyboard, video, and mouse, and KVM technology allows users to access multiple computers through shared peripherals.
Instead of installing an individual display for each server, technicians can use one rack-mounted console to switch between connected systems.
During configuration, each server should be clearly identified so that technicians can quickly determine which system they are accessing.
Proper labeling and documentation can be especially helpful when a single KVM setup supports a large number of servers.
Verify Video Connections
Before powering up the system, technicians should verify that the monitor and connected equipment use compatible video interfaces.
Servers can have different video output configurations depending on their hardware. KVM switches may also support specific input and output standards.
Checking compatibility before installation can prevent unexpected display problems.
If adapters or converters are required, they should be selected according to the equipment specifications rather than added as an afterthought.
A simple compatibility check can save considerable troubleshooting time during deployment.
Configure the Display Settings
Once the physical installation is complete, the display should be configured according to the environment.
Resolution is one of the most important settings. The selected resolution should provide clear visibility of operating system interfaces, server configuration screens, diagnostic information, and other content technicians need to view.
Brightness and contrast may also need adjustment depending on the lighting conditions in the data center.
A screen that is too bright can be uncomfortable in a dark server room, while insufficient brightness can make text difficult to read.
The objective is to establish a comfortable and practical viewing experience for technicians.
Configure KVM Switching
When a 1U rack mount monitor is used with a KVM switch, the switching configuration should be tested carefully.
Each connected server should appear correctly when selected. Keyboard and mouse functionality should also be verified.
Technicians should test every connected port rather than assuming that the entire system is functioning correctly after checking only one server.
This is especially important in larger data centers where a single KVM configuration may provide access to numerous machines.
Clear port labeling can also make day-to-day server management easier.
Consider Power Requirements
The monitor’s power requirements should be considered alongside the rest of the rack equipment.
Data centers typically use structured power distribution systems, so the display should be connected according to the facility’s established power-management practices.
Power cables should be routed cleanly and kept organized with other rack connections.
If the monitor includes additional equipment such as a KVM system, the power requirements of the complete setup should be considered rather than evaluating the display in isolation.
Protecting Rack Airflow
Data center racks depend on controlled airflow to manage heat.
Servers and networking equipment can generate substantial heat, particularly in high-density installations. Equipment should therefore be positioned and installed without unnecessarily obstructing the rack’s intended airflow path.
Before installing a 1U rack mount monitor, review its ventilation and operating temperature specifications.
The display should also be positioned according to the manufacturer’s installation instructions.
Good thermal planning is particularly important when several racks are installed in a confined data center environment.
Test Accessibility After Installation
A monitor may be technically installed correctly but still be inconvenient to use.
After installation, technicians should test the complete range of movement if the display is mounted on sliding rails.
Check that the monitor can be extended comfortably, that cables do not become strained, and that the screen can be viewed from the normal working position.
Controls, keyboard, touchpad, or other integrated components should also be tested.
These simple checks can identify practical problems before the rack becomes fully populated.
Document the Configuration
Documentation is often overlooked during equipment installation.
Data center teams should record which servers are connected to each KVM port, which video interfaces are being used, and where important cables are routed.
Clear documentation can make future maintenance much easier.
If a technician needs to access a specific server months after installation, they should be able to identify the correct connection without tracing every cable manually.
Labels and configuration records are especially valuable in large-scale server environments.
Maintenance After Installation
Installing a 1U rack mount monitor is not the end of the process.
Like other rack equipment, the display should be inspected periodically. Technicians can check cables, mounting hardware, connectors, and sliding mechanisms during routine maintenance.
The screen should also be kept clean using cleaning methods appropriate for the display surface.
If any component shows signs of wear or damage, it should be evaluated according to the manufacturer’s recommendations.
Routine inspection can help maintain reliable operation over the equipment’s service life.
Choosing a 1U Rack Mount Monitor for Your Data Center
The right monitor depends on the requirements of the specific facility.
Organizations should consider rack compatibility, display size, resolution, connectivity, KVM requirements, mounting design, cable management, environmental conditions, and expected frequency of use.
Rackmount Sales offers rack-mounted display solutions for professional server and data center environments. When selecting equipment, data center operators can evaluate available configurations based on the physical layout and technical requirements of their infrastructure.
A display that fits properly, connects reliably, and provides convenient access can become an effective part of a well-organized rack system.
Final Thoughts
Installing a 1U rack mount monitor in a data center requires more planning than simply securing a display to a rack.
The rack dimensions, mounting position, cable routing, video interfaces, KVM configuration, power connections, airflow, and technician accessibility should all be considered.
Proper configuration is equally important. Once installed, the monitor should be tested with connected servers, display settings should be adjusted, and KVM ports should be documented clearly.
When these factors are addressed from the beginning, a 1U rack mount monitor can provide a compact and convenient local access solution for modern data center infrastructure.
For high-density server environments, careful installation helps ensure that the display complements the rack rather than creating another maintenance challenge.
